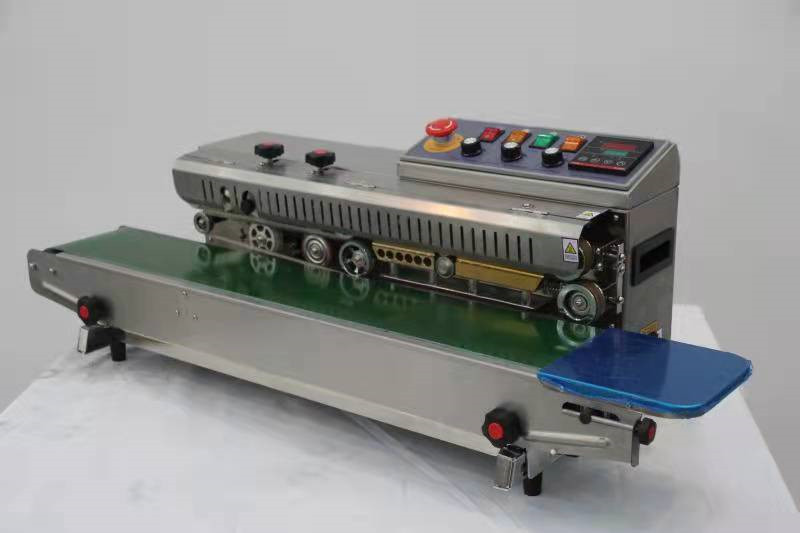

FRD1000 Continuos bag sealing machine with ink roller printing|FRD1000W|Continous band sealer

Details
Reviews
Tags
FAQ

This series multi-functional film sealer(with solid inker printer) is suitable for small bags packaging and adopts electronic constant temperature control system and speed adjusting transmission mechanism. It can seal plastic films of various materials. Such as PE,PP, Aluminum foil. And can be fixed date embossing system.
Can be print the desired date simult-aneously with sealing. With the characters clear and conspicuous, the colors are selectable and uneasy to erase and unchangeable, and instant printing and instant dry.
It is convenient to change date letters. And the newly type (microcomputer control) with counting device.

Model	FRD-1000W	FRD-1000LW	FRD-1000LD
Voltage(V/Hz)	AC 220/50 110/60	AC 220/50 110/60	AC 220/50 110/60
Motor Power(W)	50(100)	50(100)	50(100)
Sealing Power(W)	220X2(300X2)	220X2(300X2)	220X2(300X2)
Printing Heating Power	60x2	60x2	60x2
Speed(m/min)	0-16(0-25)	0-16(0-25)	0-16(0-25)
Seal Width(mm)	5-12(W≤40)	5-12(W≤40)	5-12(W≤40)
Temperature Range (℃)	0-400	0-400	0-400
Printing Type	Solid ink roller
Distance form Sealing Center to Conveyor(mm)	15-50	150-270	15-50
Distance from Base Plate to interior Conveyor	60-140	/	60-140
Conveyor Size(L x W)(mm)	930X155	930X155	930X155
Max.Conveyor Load for Single Bag(KG)	≤1	≤1	≤1
Overall Conveyor Load(KG)	≤3	≤3	≤3
External Dimensions (L x W x H)(mm)	930x400x300mm 930x400x400mm(box)	930x350x450mm	930x460x(800+200adjustable)mm
Dimensions (L x W x H)(mm)	950x440x350mm	950x440x350mm	950x440x350mm
Bracket Weight(KG)	/	3	9.5
Net Weight(KG)	26(28)	29	35
Gross Weight(KG)	29(31)	32	40
