AM300S-H Laboratory Stirrer/Stirring machine 100-1800RPM

Technical parameters:

Type: AM300S-H

Rated voltage: AC220V

Rated frequency: 50/60Hz

Input power: 510W

Output power: 300W

Stirring shaft output torque: 159.2N.cm

Work mode: S1 (continuous)

Operating control mode: combined control knob

Speed adjusting range: 100-1800RPM

Speed control type: stepless

Timing control range: 1-1000 min

Speed digital display: x1rpm  LED

Speed dynamic detection: YES

Speed memory function: YES

Overload protection function: YES

Stirring shaft fixed way: quick clamp

Clamping torque: 159.0N.cm

Clamping range: Φ2-13mm

Stirring impeller configuration: fan vane impeller

Stirring capacity : 50-40000ml

Stirring processing viscosity: 100000mPa.S

Allow environment temperature: ≤40℃

Allow relative humidity: ≤80%

Size: 215 * 310 * 720mm

Net Weight: 9kg

Gross weight: 10kg

Product introduction:

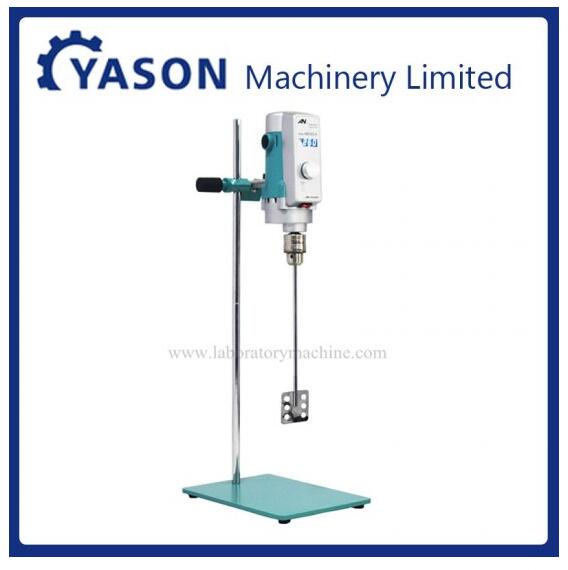

AM300S-H series laboratory stirrer adopts the structure compact series type micro motor driver, suitable for laboratory low to medium and high viscosity of the liquid mixture stirring. This machine consists of driving motor, speed controller and increase torque, etc. Mixing console is made of high quality engineering plastic and die casting aluminum alloy for the body, the operation is stable; Output terminal application variable speed power organization, make the output torque multiplication; Stirring speed controlled by microprocessor, instantly effective compensation because of load change and the power supply voltage fluctuation caused by the change of speed, constant speed and reliable; The built-in soft starting, automatic overload protection, protect the safety of the full load run continuously for a long time; Stirring speed stepless adjustment, meet the experiment of stirring speed correction at any time. With digital display intuitive, provide experiment data acquisition is convenient; Operation timing control function to ensure timeliness effectively controlled experiment.
